PACE Active Balancing BMS 16S 200A 41755

This product is a 16-series iron-lithium residential energy storage battery management system (BMS) designed to monitor and control battery status, prevent overcharging and over-discharging, thereby extending battery life. It is suitable for residential energy storage batteries. This product is a 16-series iron-lithium residential energy storage battery management system (BM). The basic configuration includes display options , charging current limiting (e.g., 20A, activated when charging current exceeds 100A), heating film function , circuit breaker function (closes dry contacts during fault protection), buzzer, reverse connection protection, low-voltage switch, Bluetooth & WiFi, LED strip interface, etc.). It monitors and controls battery status to prevent overcharging and over-discharging, thereby extending battery life. Suitable for residential energy storage batteries.
Balancing function Dimensions (LxWxH) Communication Display
Active balancing
300*100*50(mm)
RS232/RS485/CAN
3.2/3.5/5/7 Inch
1.Max charging 2.Nominal voltage 3.Dimensions (LxWxH) 4.Charging voltage
1. 50A
2. 36V
3.230*170*155(mm)
4. 43.8V
家庭储能

Home energy storage solutions, safeguarding your batteries and inverters.

BMS

BMS features SOC estimation, charge/discharge current detection, overcurrent alerts, and protection functions.

CAN多种协议

Configure parameters via host computer, including charge/discharge currents, sleep mode, and balancing settings.

上位机设置

PACE lithium batteries offer five times more power compared to lead-acid batteries

PRODUCT

PRODUCT

SPECIFICATIONS

Charger includedNo
Battery IncludedYes
Hign-concerned ChemicalNone
Model NumberP16S200A-PC41755L20BW-K4-IOB
Accessory TypeBattery Accessories
Brand NamePACEex
OriginMainland China
Large ordersContact Customer Service
Baud rate9600bps
Communications rate500K
Monoblock overcharge alarm voltage3600mV
Single over-discharge alarm voltage2800mV
Overcharge alarm voltage57.6V
Over discharge alarm voltage44V
Charge overcurrent alarm current205A
Discharge overcurrent alarm current205A
Short circuit protectionYes
MOS over-temperature alarm temperature90℃
Equalization functionYes
Frame 31 1

Worry-free Security

The residential energy storage BMS continuously monitors battery status in real time, precisely preventing overcharging, over-discharging, and abnormal temperatures. It safeguards your home 24/7, eliminating potential risks.

                             ——Click here for more battery details

DB03A111 A09A 45b7 BBA0 D0E3C7499F90

Suitable for Multiple Household Scenarios

Effortlessly adapts to multiple scenarios including daily home use, emergency backup, and solar integration. Saves 30% on electricity consumption and extends battery life by 50%. Control everything with a single tap via the mobile app.

                                      ——Click here for more battery details

制作电路板生产线

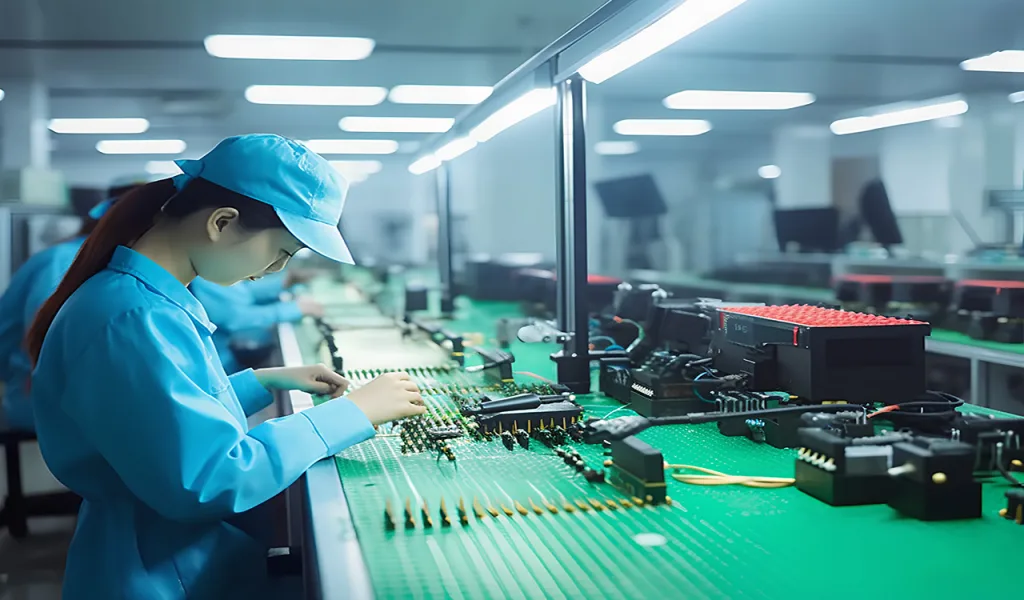

R&D and Production Strength

More than one hundred R&D personnel, supporting R&D center, reliability test room, product qualification test center. Testing center, reliability testing room. Product identification testing center. Own factory, product performance is stable and quality is trustworthy

                                     ——Click here for more battery details
