We offer 3.2-inch keypad screens and 3.5/5/7-inch touchscreens for your selection.
PACE

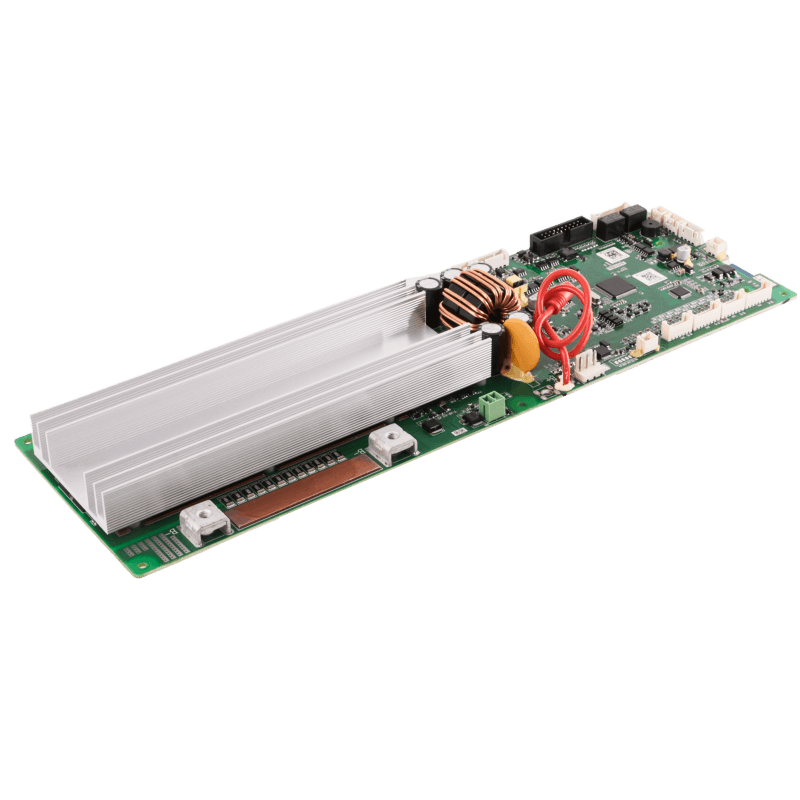

16S 200A 31670 BMS
with BT Wifi
This product is a 16-series iron-lithium residential energy storage battery management system (BMS) designed to monitor and control battery status, prevent overcharging and over-discharging, thereby extending battery life. It is suitable for residential energy storage batteries. This product is a 16-series iron-lithium residential energy storage battery management system (BM). The basic configuration includes display options , charging current limiting (e.g., 20A, activated when charging current exceeds 100A), heating film function , circuit breaker function (closes dry contacts during fault protection), buzzer, reverse connection protection, low-voltage switch, Bluetooth & WiFi, LED strip interface, etc.). It monitors and controls battery status to prevent overcharging and over-discharging, thereby extending battery life. Suitable for residential energy storage batteries.
Balancing function Dimensions (LxWxH) Communication Display
Passive Equalization
300*100*50(mm)
RS232/RS485/CAN
3.2/3.5/5/7 Inch
2. 36V
3.230*170*155(mm)
4. 43.8V
Home energy storage solutions, safeguarding your batteries and inverters.
BMS features SOC estimation, charge/discharge current detection, overcurrent alerts, and protection functions.
Configure parameters via host computer, including charge/discharge currents, sleep mode, and balancing settings.
PACE lithium batteries offer five times more power compared to lead-acid batteries
PRODUCT
PRODUCT
SPECIFICATIONS
| Charger included | No |
| Battery Included | Yes |
| Hign-concerned Chemical | None |
| Model Number | P16S200A-PC31670L20BW-IOB-1.2 |
| Accessory Type | Battery Accessories |
| Brand Name | PACEex |
| Origin | Mainland China |
| Large orders | Contact Customer Service |
| Baud rate | 9600bps |
| Communications rate | 500K |
| Monoblock overcharge alarm voltage | 3600mV |
| Single over-discharge alarm voltage | 2800mV |
| Overcharge alarm voltage | 57.6V |
| Over discharge alarm voltage | 44.8V |
| Charge overcurrent alarm current | 205A |
| Discharge overcurrent alarm current | 205A |
| Short circuit protection | Yes |
| MOS over-temperature alarm temperature | 90℃ |
| Equalization function | Yes |
Worry-free Security
The residential energy storage BMS continuously monitors battery status in real time, precisely preventing overcharging, over-discharging, and abnormal temperatures. It safeguards your home 24/7, eliminating potential risks.
Suitable for Multiple Household Scenarios
Effortlessly adapts to multiple scenarios including daily home use, emergency backup, and solar integration. Saves 30% on electricity consumption and extends battery life by 50%. Control everything with a single tap via the mobile app.
R&D and Production Strength
More than one hundred R&D personnel, supporting R&D center, reliability test room, product qualification test center. Testing center, reliability testing room. Product identification testing center. Own factory, product performance is stable and quality is trustworthy
